Original Kegerator Specifications

Nat
  • Updated



Kegerator Specs:

  • Refrigerant - R134a/non flammable
  • Rated Voltage - 220V – 240V
  • Rated Frequency - 50Hz
  • Rated Current - 0.9A
  • KW - 0.4-0.5/hour
  • Temperature range - from 0-28°C (32-82.4°F)

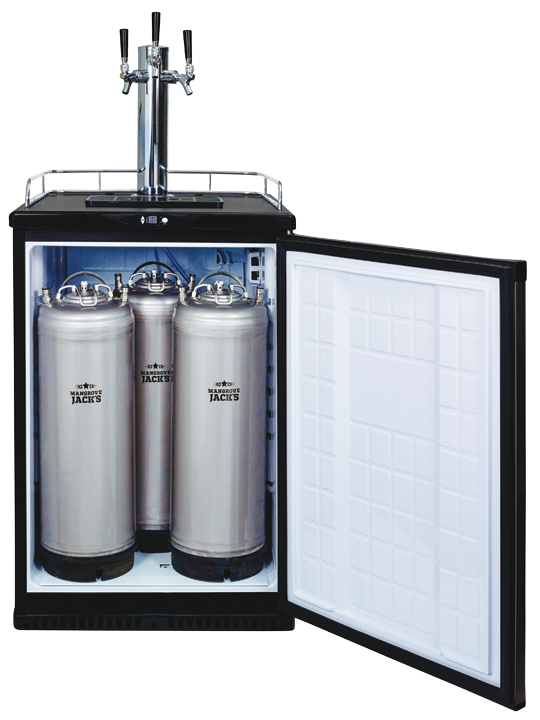

mj_3tap_kegerator_empty_1_4_1_1.png mj_3tap_kegerator_open_1_4_1_1.png

Kegerator Dimensions:

External Measurements

Internal Measurements

Fridge Shelf

CO2 Cylinder

Tower Height – 450mm

Fridge Height – 875mm

Width - 616mm

Depth - 605mm / 735mm with Co2 Holder

Rail Height - 70mm

Wheels/Castors Height (on the base) - 70mm

Depth - 425mm

Height - 725mm

Width - 550mm

Depth  375mm

Width- 535mm

Height - 470mm

Diameter - 130mm


Beer Tap Tap Thread Beerline CO2 Cradle

Mainly brass with some components made of silicone, stainless steel, plastic and rubber.

Faucet - 18G

Shank - 14G

Internal diameter - 4mm

Outer diameter - 6mm

Please note the kegerator comes with a cradle that goes on the back of the kegerator to hold the CO2 bottle. This hangs out approx 135mm from the back of the kegerator.
